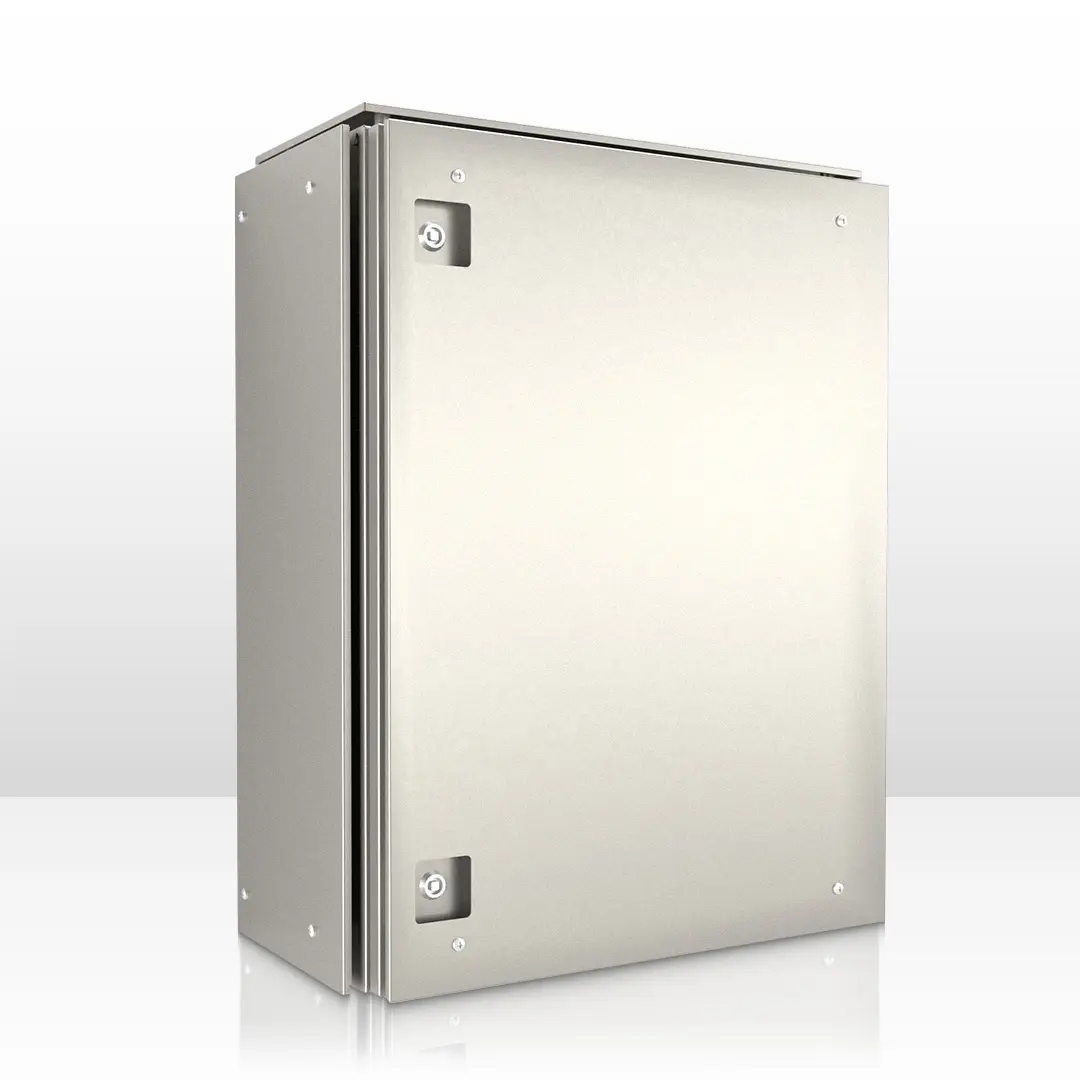

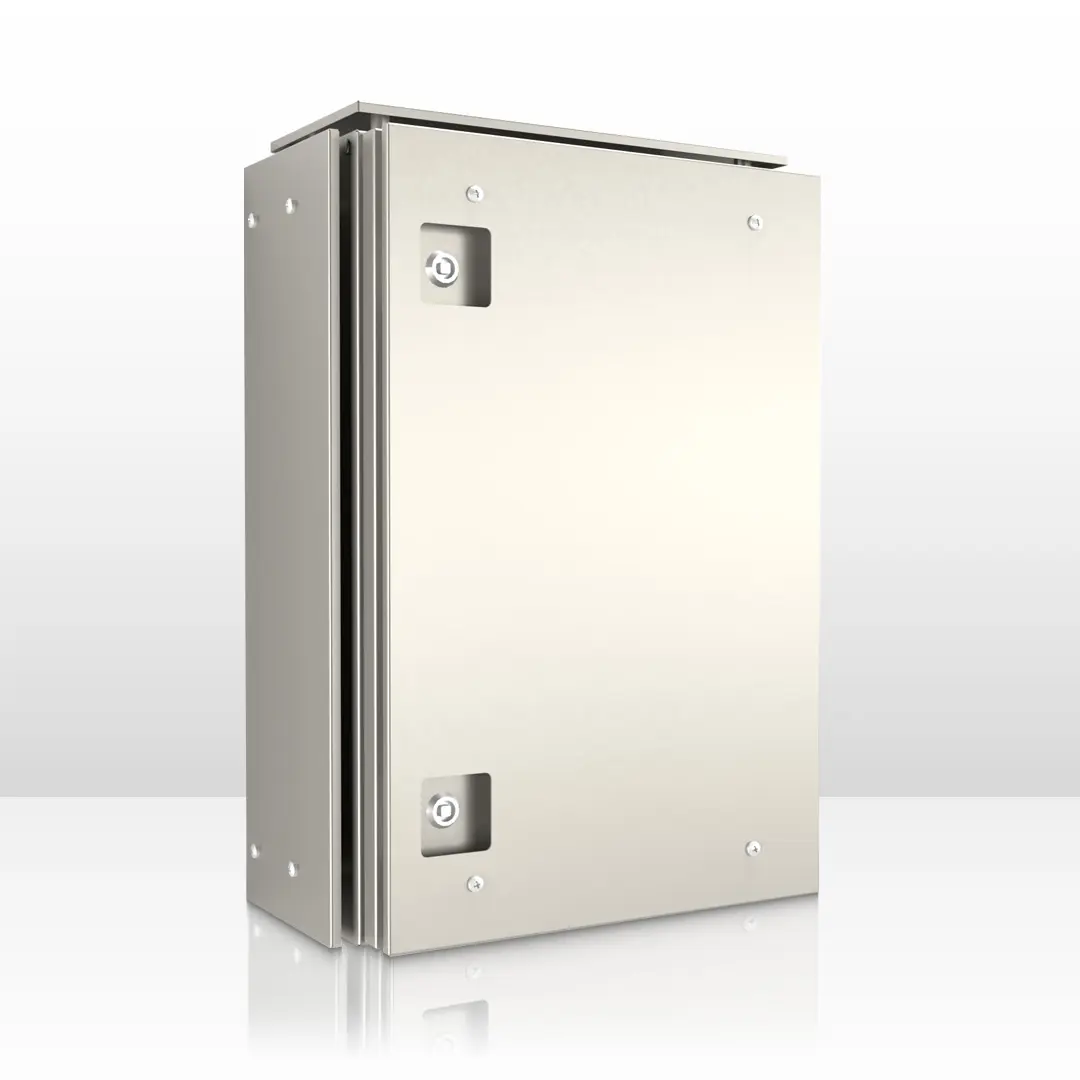

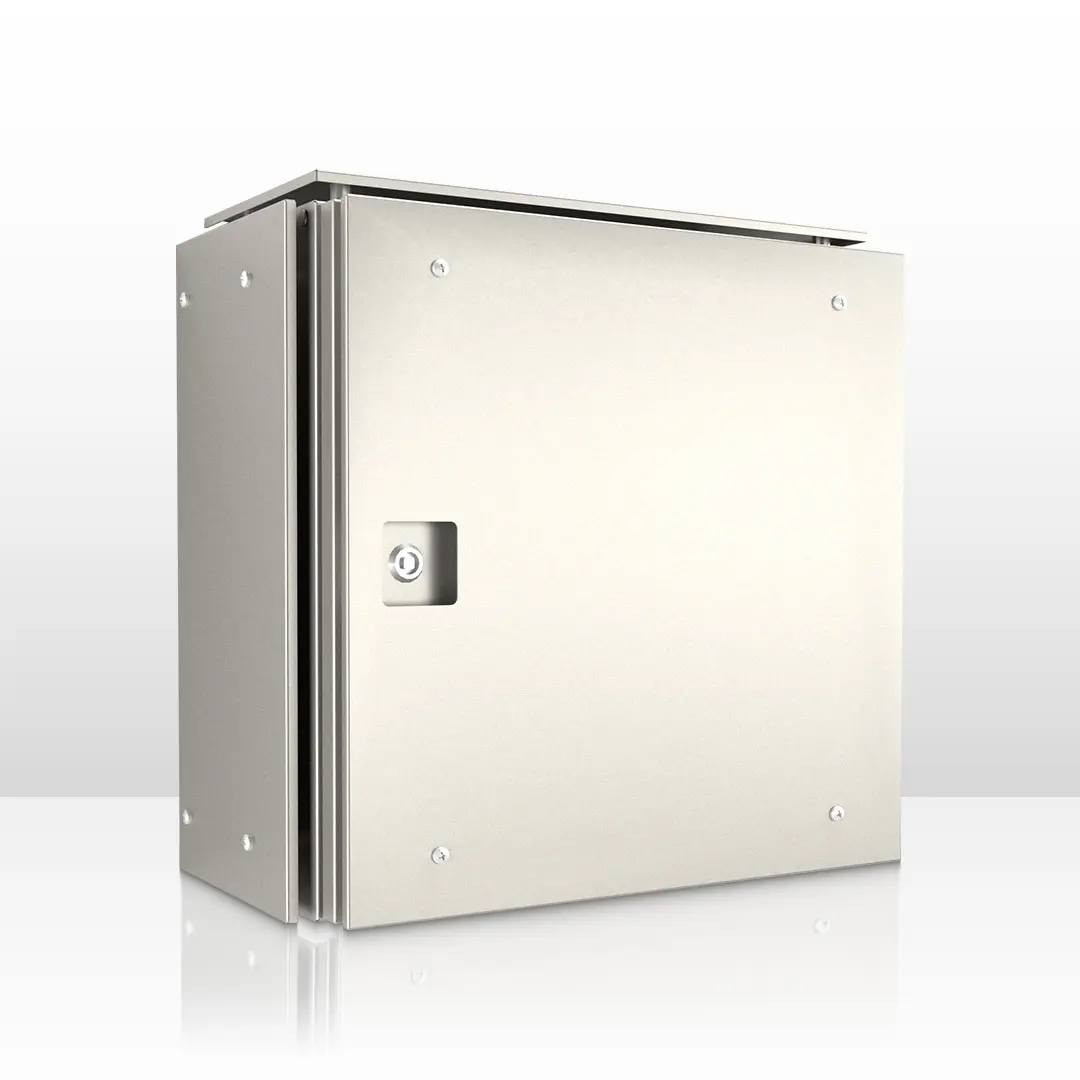

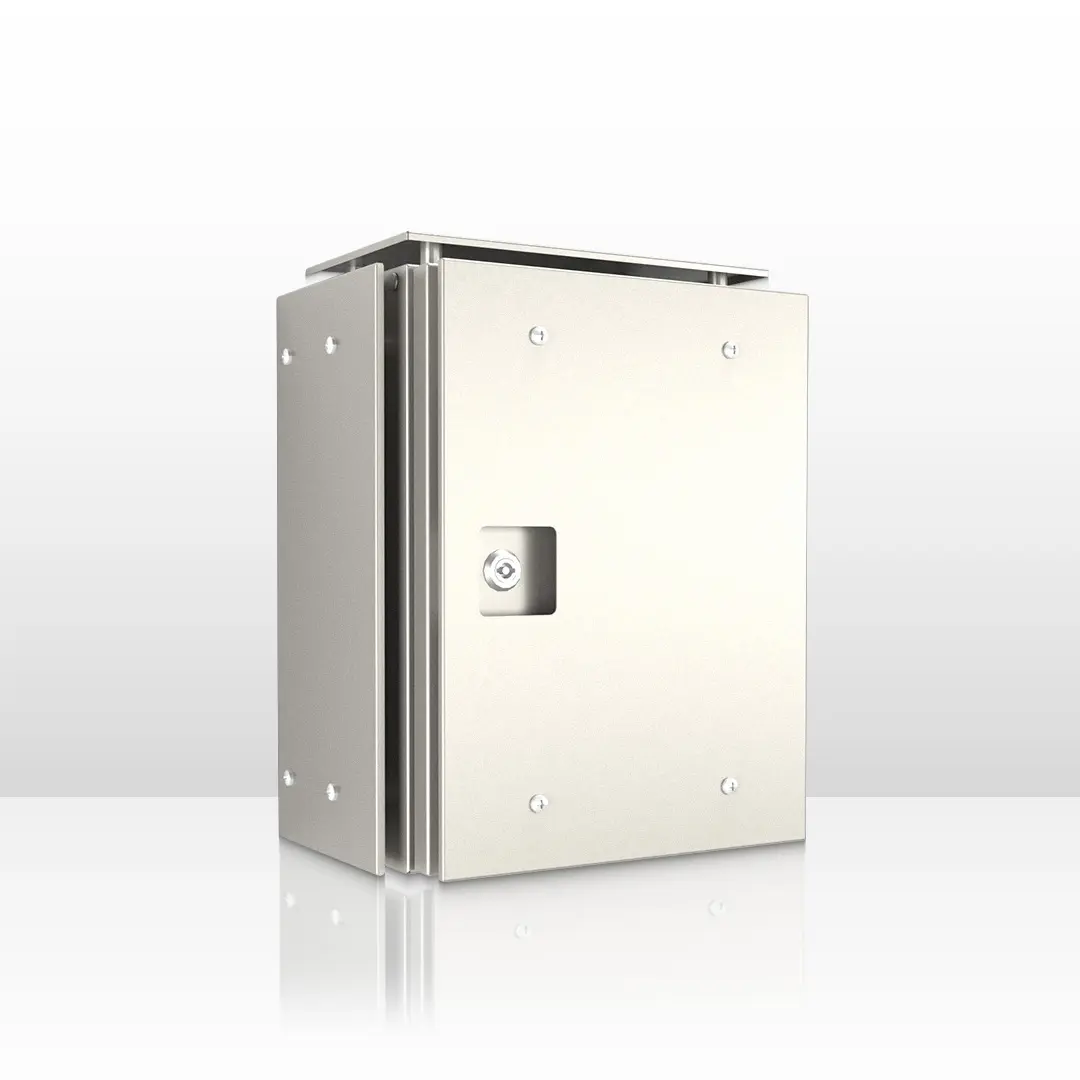

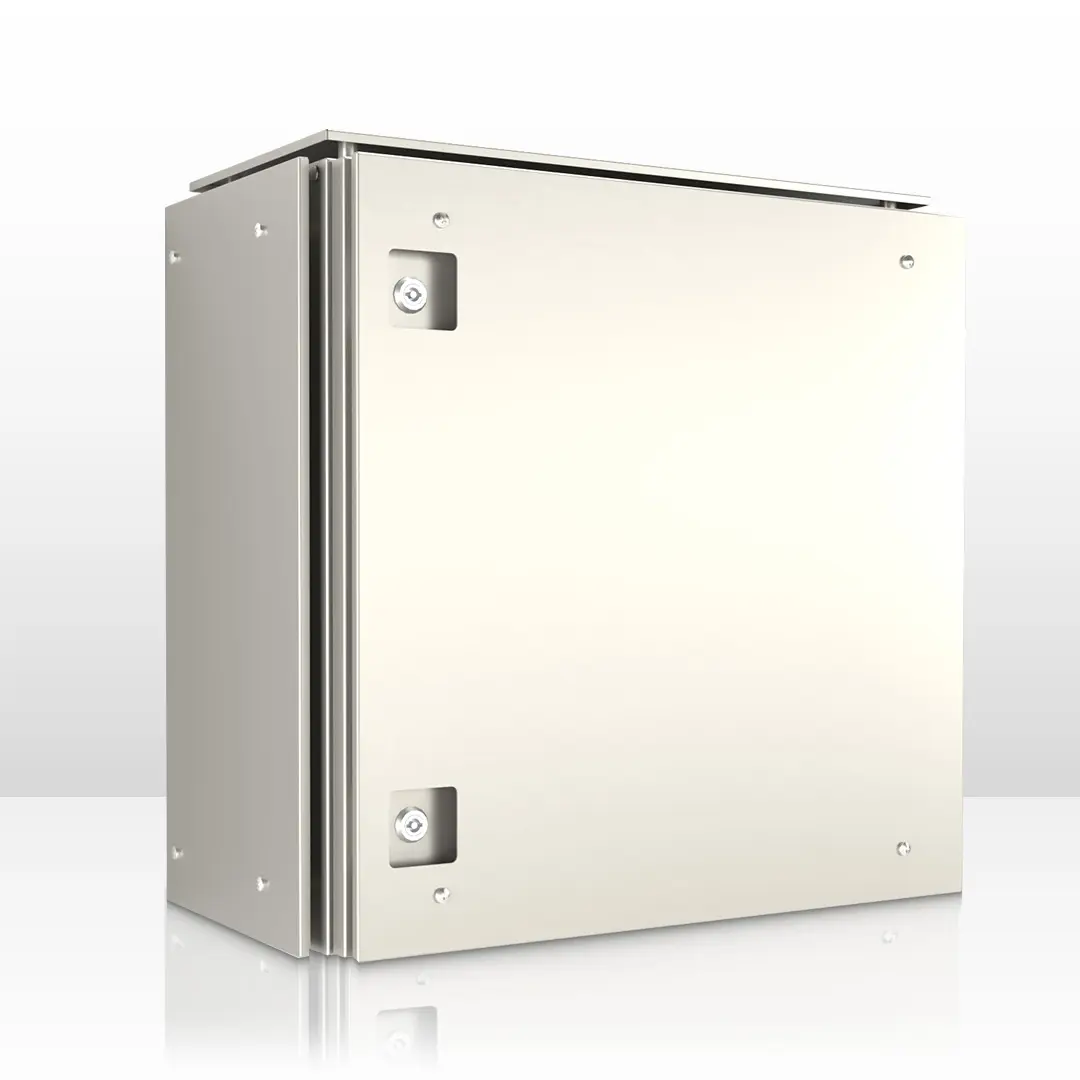

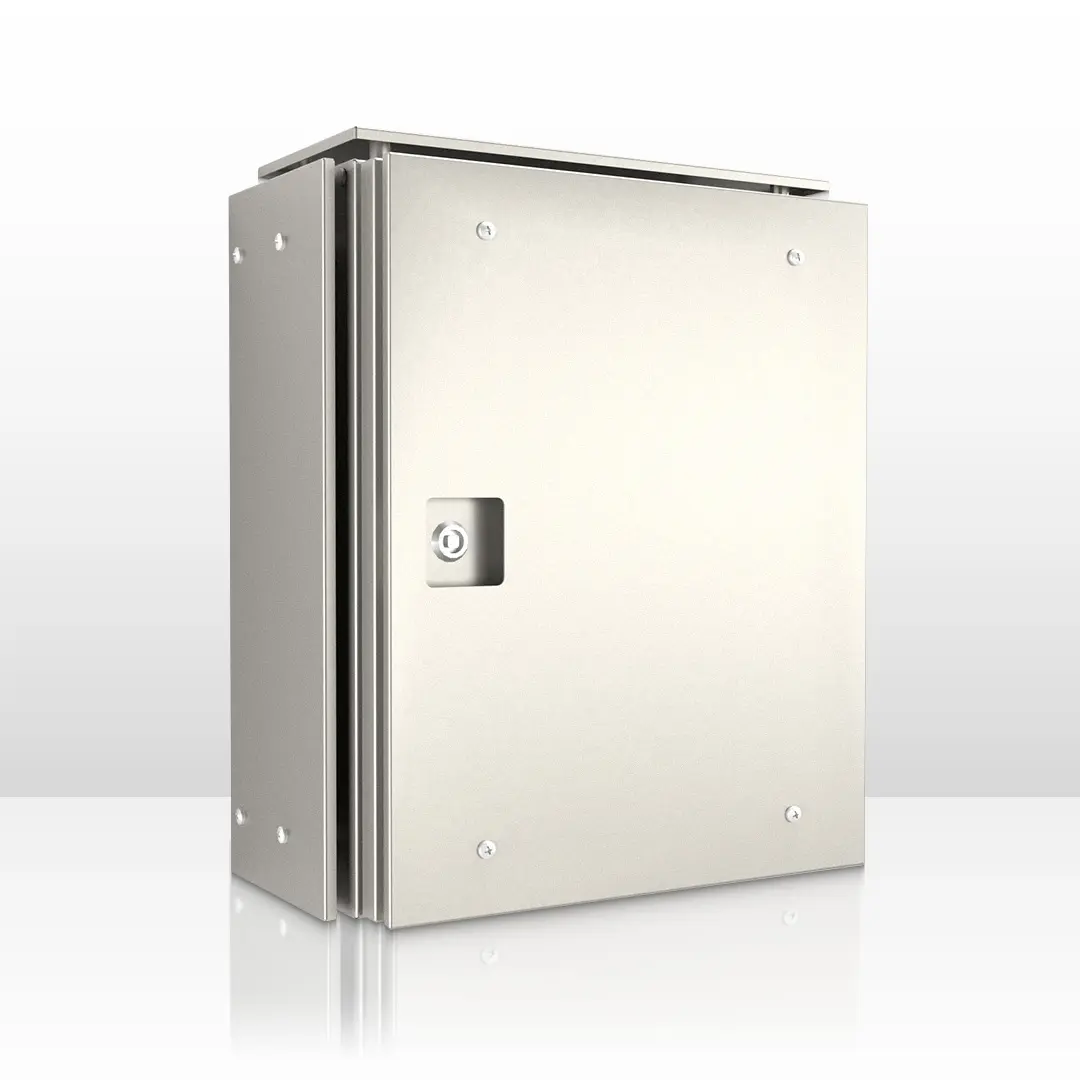

Stainless Steel Enclosures with Sun Shields

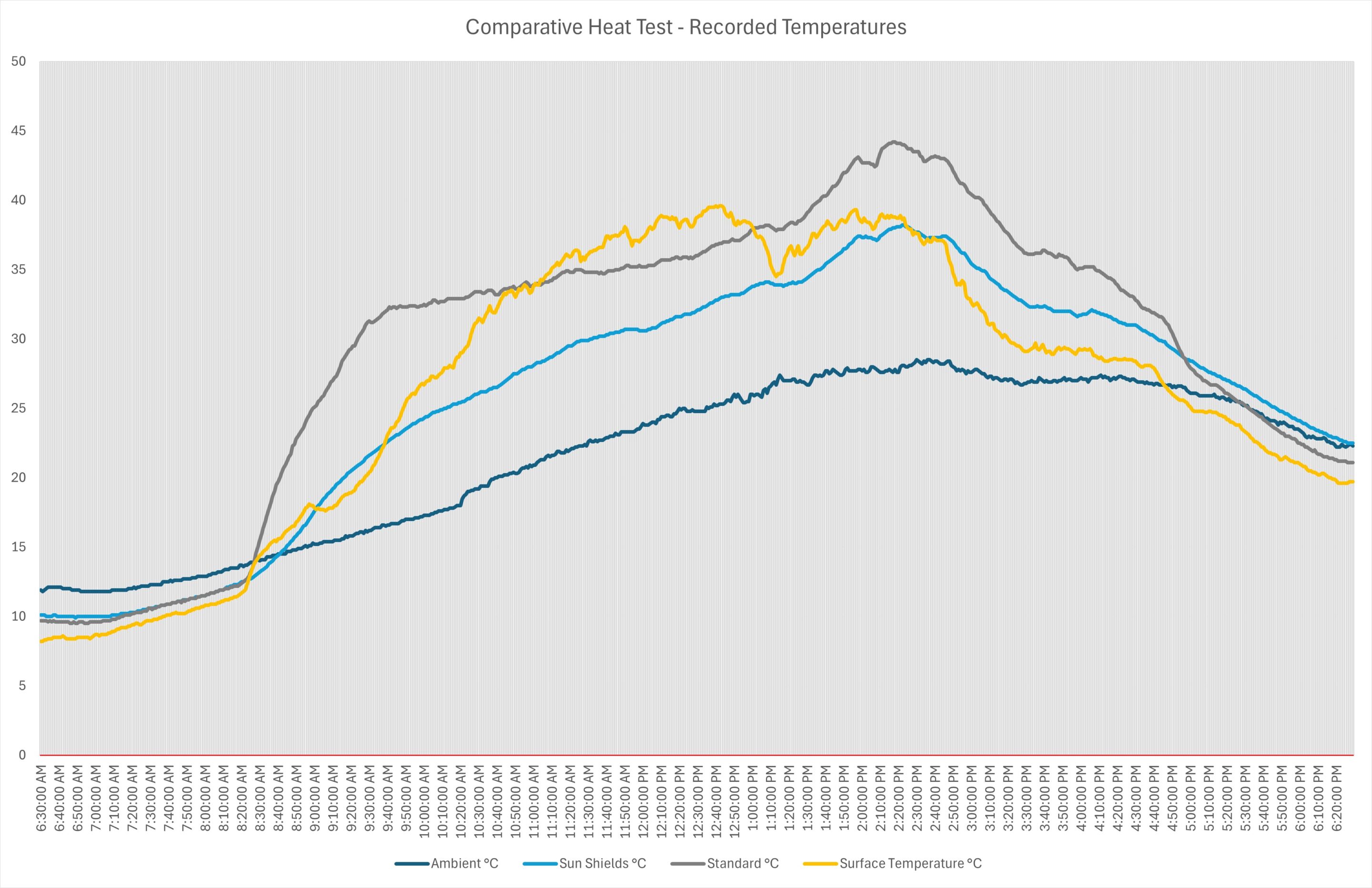

The SS1 range of stainless steel electrical enclosures with sun shields are rated for protection up to IP66 and are aimed to reduce heat from direct sunlight. This range is equipped with sun shields fitted to the external surfaces to help regulate the internal temperature of the electrical enclosure when exposed to direct sunlight. Our electrical enclosures are manufactured to the highest standards using world-class international manufacturing facilities in Europe. They comply to IEC/EN 62208, IEC/EN 61439 and IEC/EN/AS 60529 up to IP66 IK10.
IP66 Stainless Steel Enclosures with Sun Shields
The SS1 range of stainless steel electrical enclosures are rated for protection up to IP66. This range is wall-mounted, grade 316L stainless steel, single door construction suitable for extreme duty applications.
Features & Specifications
Protection: IP66 IK10 (NEMA 4x)
Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, IEC/EN 61439, UL, RoHS, CE, UKCA
Material:
– Body: 1.5mm Grade 316L Stainless Steel (Optional 304)
– Door: 1.5mm Grade 316L Stainless Steel (Optional 304)
– Sun Shields: 1.5mm Grade 316L Stainless Steel (Optional 304) with stainless steel fasteners
– Device Mounting Plate: 1.5mm Galvanised Steel Sheet
– Seal: Polyurethane
Surface Finish:
0.4 micron Ra surface brushed finish
Enclosure Body:
The robust monoblock body is fabricated using 1.5mm Grade 316L Stainless Steel (Grade 304 is also available). Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounts and accessory fasteners to eliminate drilling and retain IP rating. Integral device plate mounts and M6 earth studs are provided. Sun shields are fabricated using 1.5mm Grade 316L Stainless Steel sheet and are provided with spacers to offset the surface of the shield from the surface of the enclosure. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality.
Enclosure Door:
The robust surface mounted door is fabricated using 1.5mm Grade 316L Stainless Steel and incorporates concealed removable hinges with captive pins (Grade 304 is also available). The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal. Two internal cable management rails can be removed to provide additional space for equipment, duct and door mounted control components. Sun shields are fabricated using 1.5mm Grade 316L Stainless Steel sheet and are provided with spacers to offset the surface of the shield from the surface of the enclosure.
Enclosure Seal:
A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).
Enclosure Lock:
Grade 316 Stainless Steel 8mm square drive quarter turn lock with key. A full range of locking solutions are available upon request.
Device Mounting Plate:
The device mounting plate is galvanised steel sheet. It is pressed to provide strength and is pre-fitted into the enclosure.
Certificates:
IEC 60529 Degrees of protection provided by enclosures: Certificate AB-0386-T 1902.14 02/00
IEC/EN 62208 Empty Enclosures for low-voltage switchgear and controlgear assemblies: Certificate 0366932-TSE-01/01
IEC/EN61439-1, 61439-2 Low voltage switchgear and controlgear assemblies: Certificate AB-0341-T, 23-297-R1-N1-1
CE Certificate of Compliance: Certificate SZL-21 MA 13338-1
UKCA Certificate of Compliance: Certificate SZU-22MA19560-1
UL: Listing Number E534557
Warranty:
5 Year manufacturer’s warranty from the date of delivery.
